SSF 0601

12 V

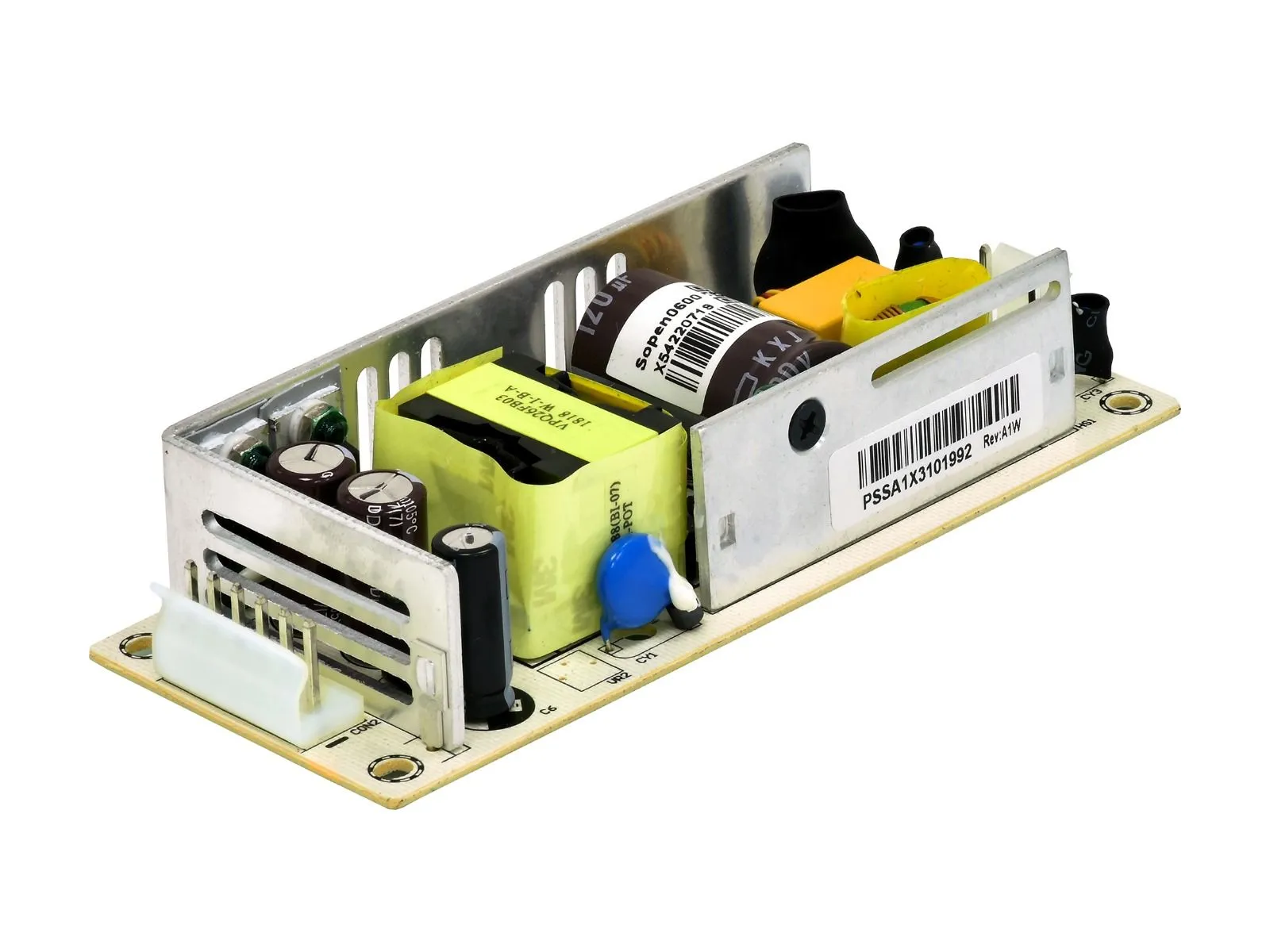

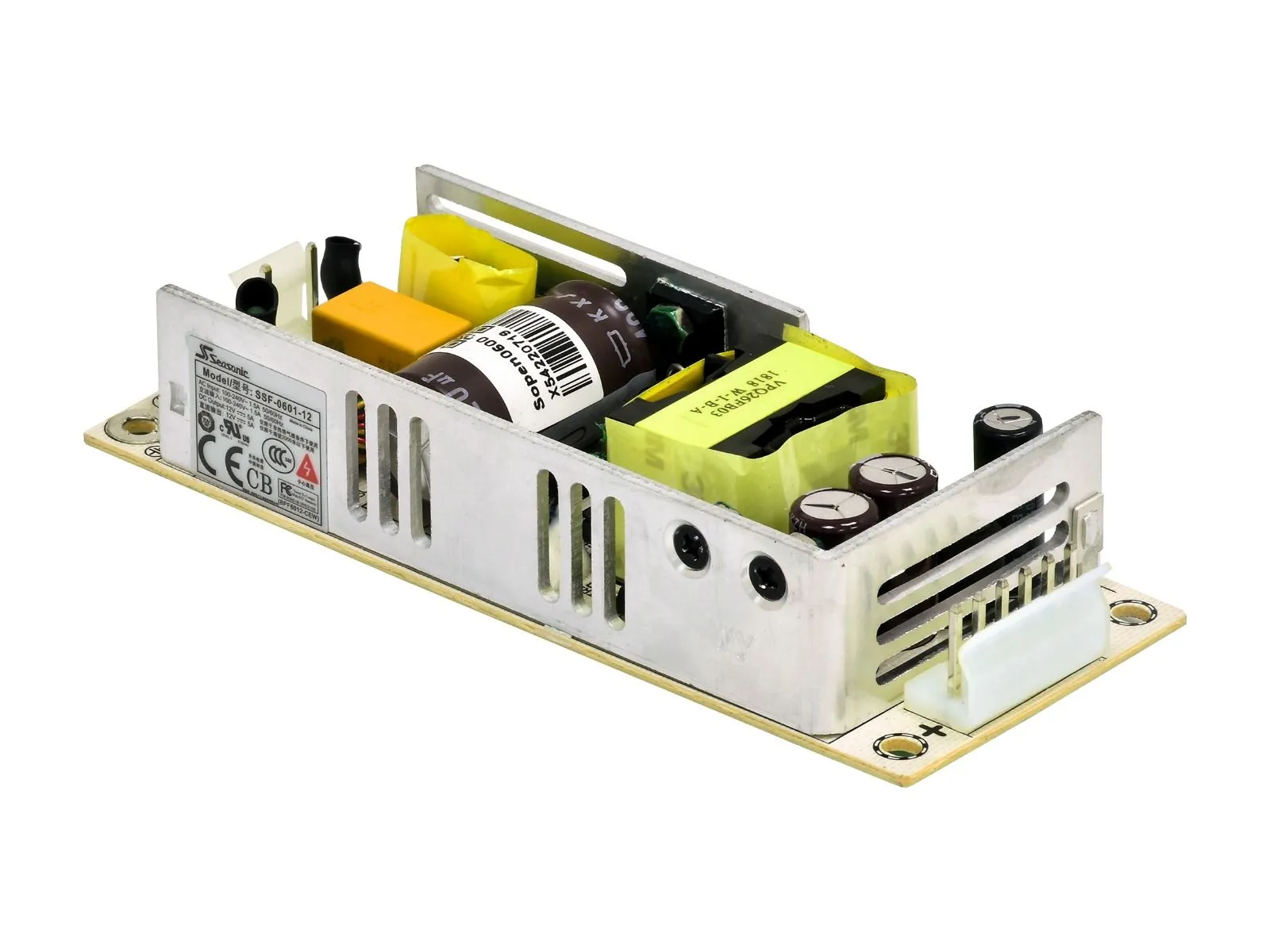

This Seasonic AC to DC open frame power supply series has built-in Class B EMI filter and important protection against over voltage, over power and short circuit occurrences. Average efficiency is around 87 % and highly reliable Japanese capacitors ensure reliability. Universal AC input and fully regulated output make this unit a versatile solution for, among others, automated teller machines, point of sale systems, network switches or computer data storage applications.

Compare

Dimensions

225 x 100 x 70 mm

Documents

All Files

Specifications

12 V

Overview	SSF-0601
Efficiency	≥ 87 %
Dimensions	127 mm (L) x 50.8 mm (W) x 24.1 mm (H)
Universal AC input / Full range	Yes
Built in Class B EMI filter	Yes
Highly reliable Japanese 105 °C aluminum electrolytic capacitors	Yes
No load power consumption ≤ 0.5 W	Yes
Fully regulated output	Yes
0–50 °C working temperature	Yes
Protections	SCP, OVP, OPP
Safety	CB, cUL, TUV, CCC, BSMI
EMI / EMC	CE, FCC, RCM

Model	Total continuous power	O/P Voltage	O/P Current	Efficiency
SSF-0601-12	60 W	12 V	5 A	87%
