TFX TGS

300 W

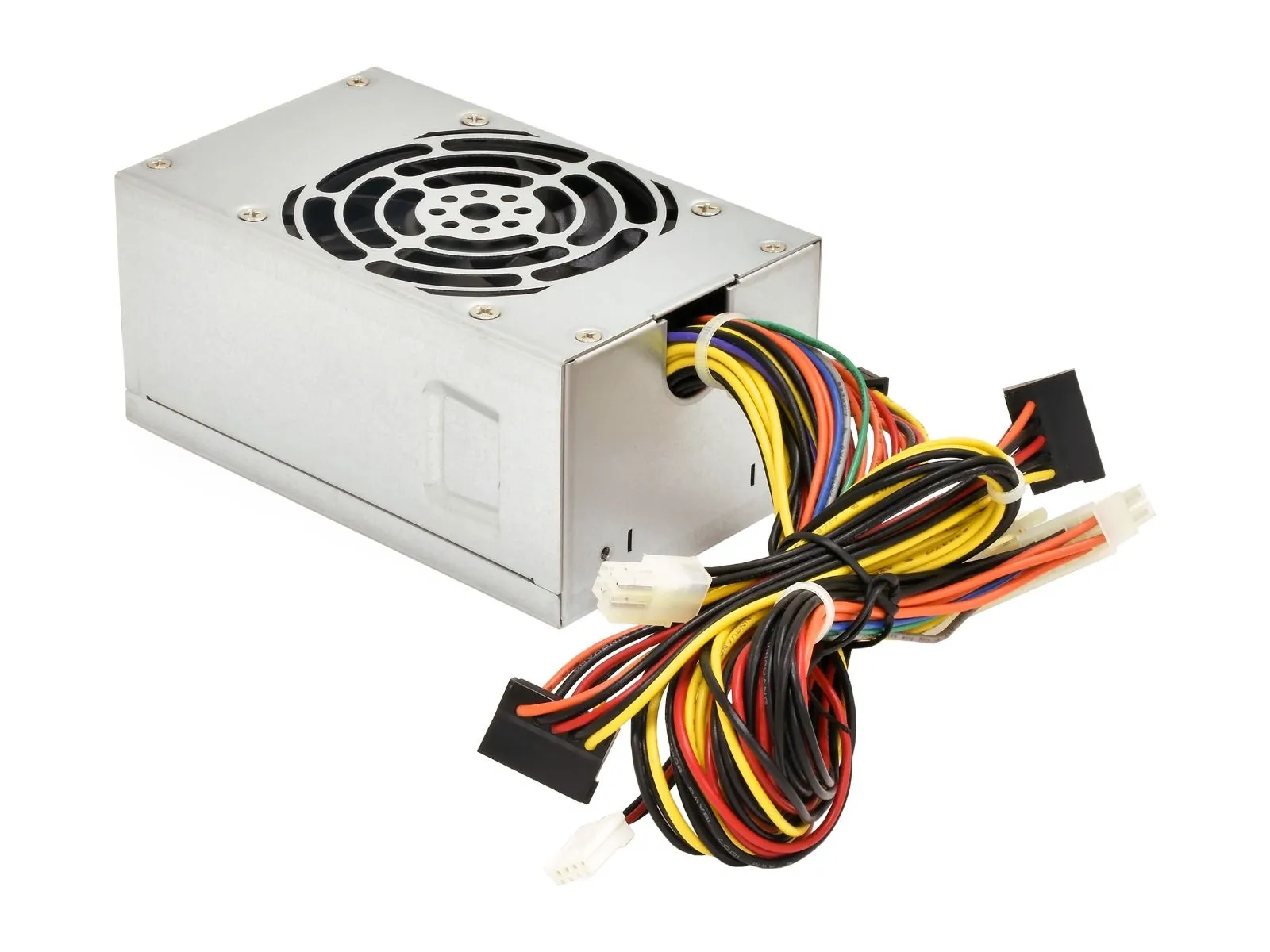

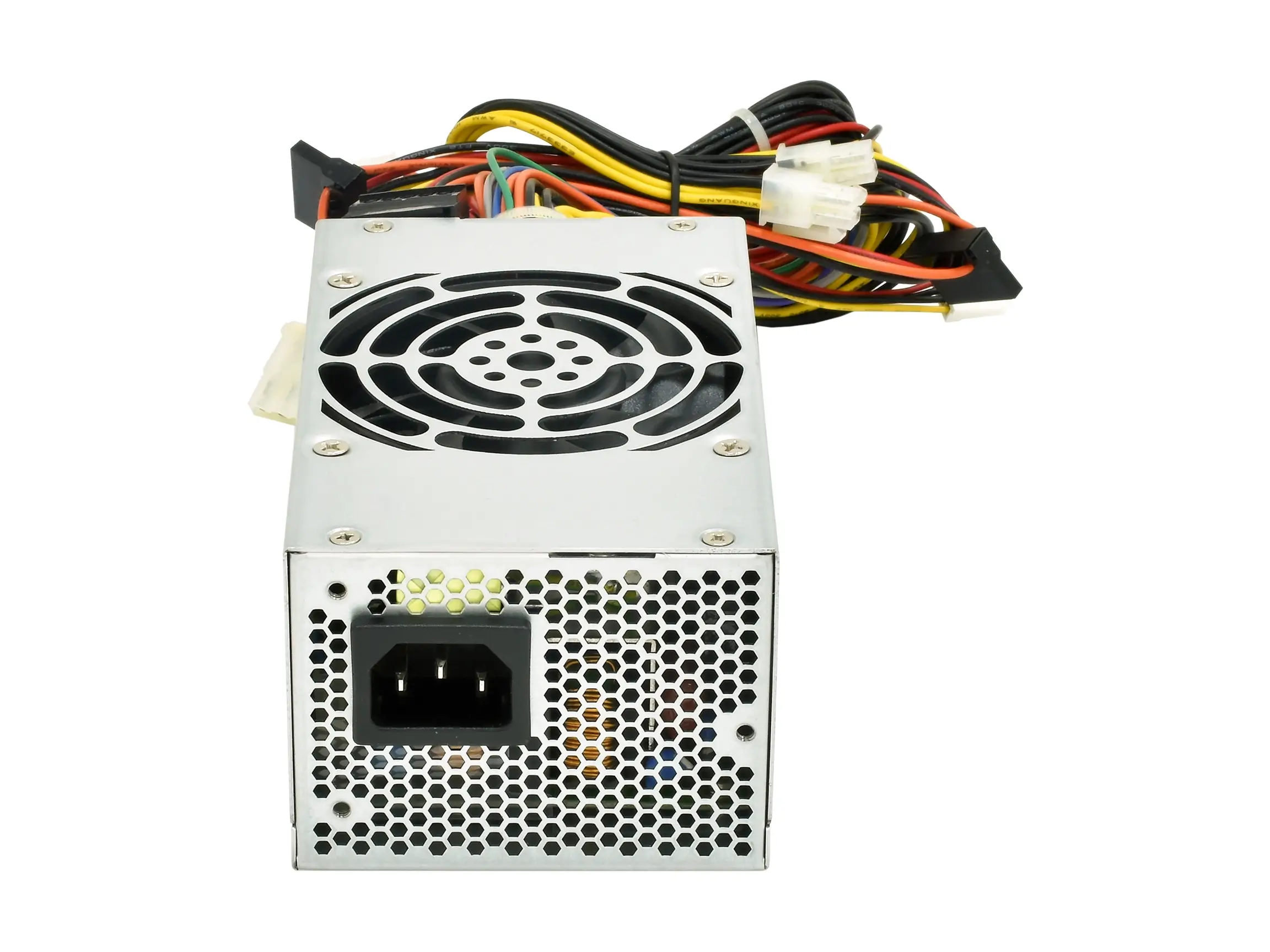

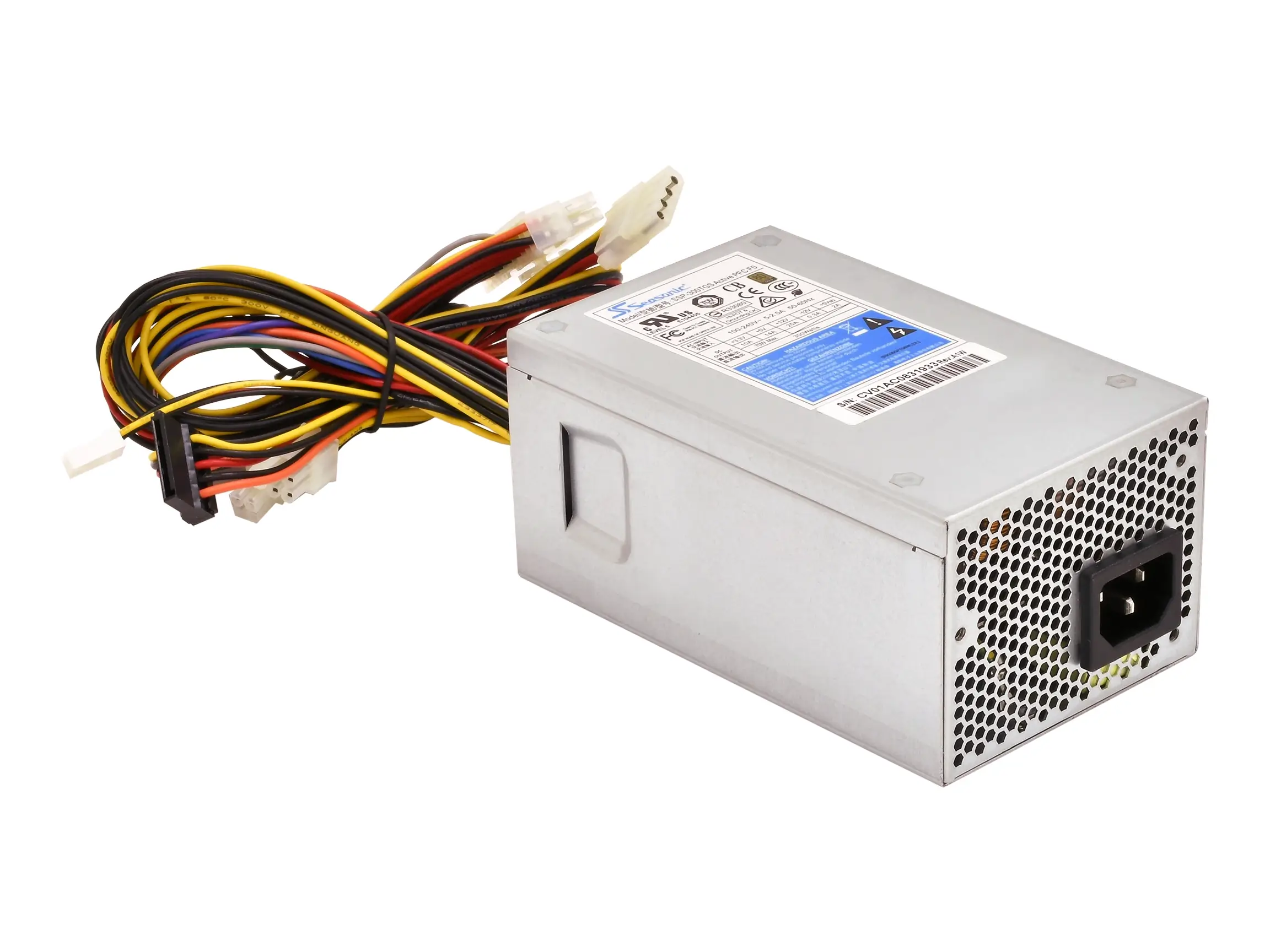

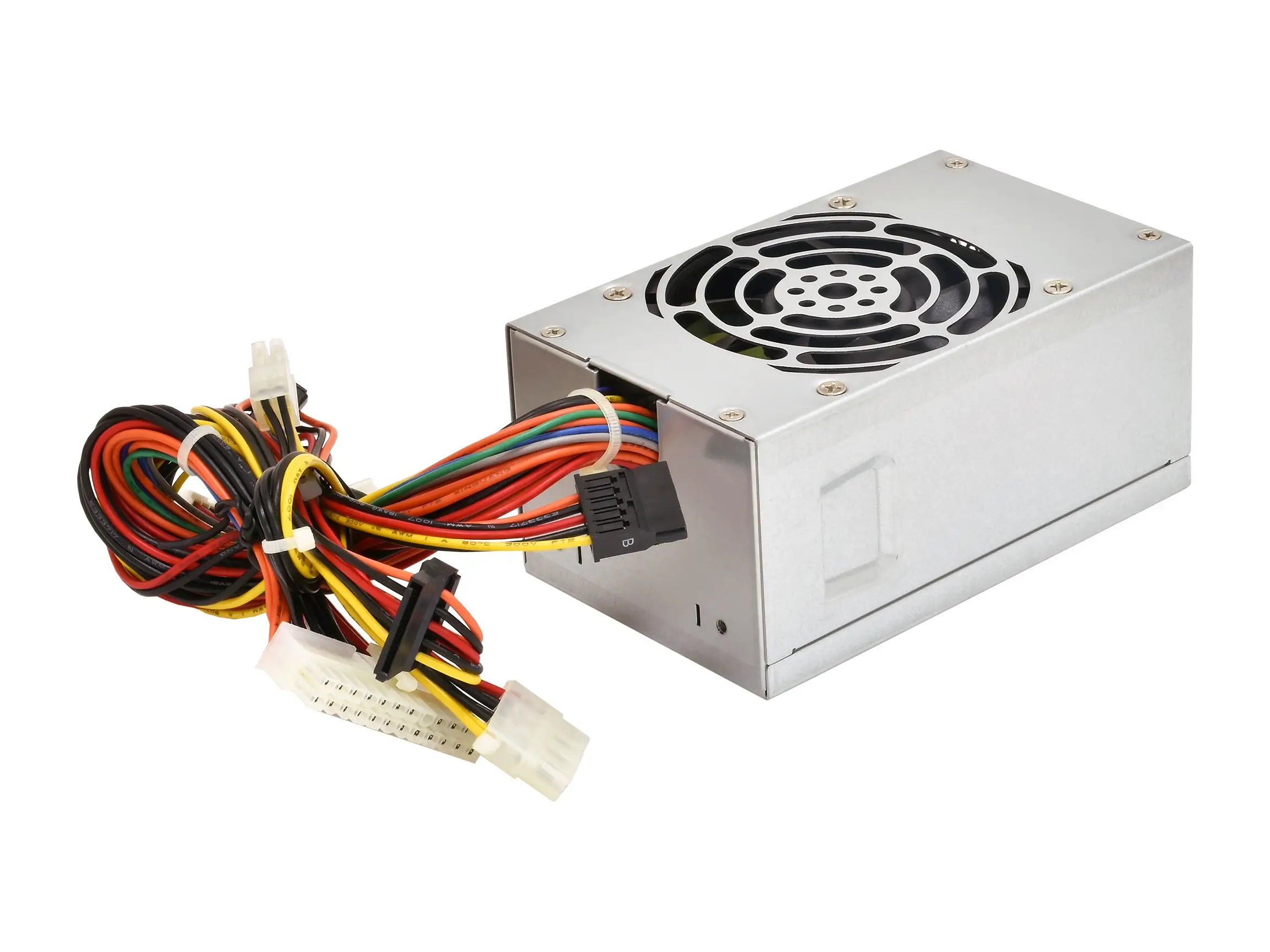

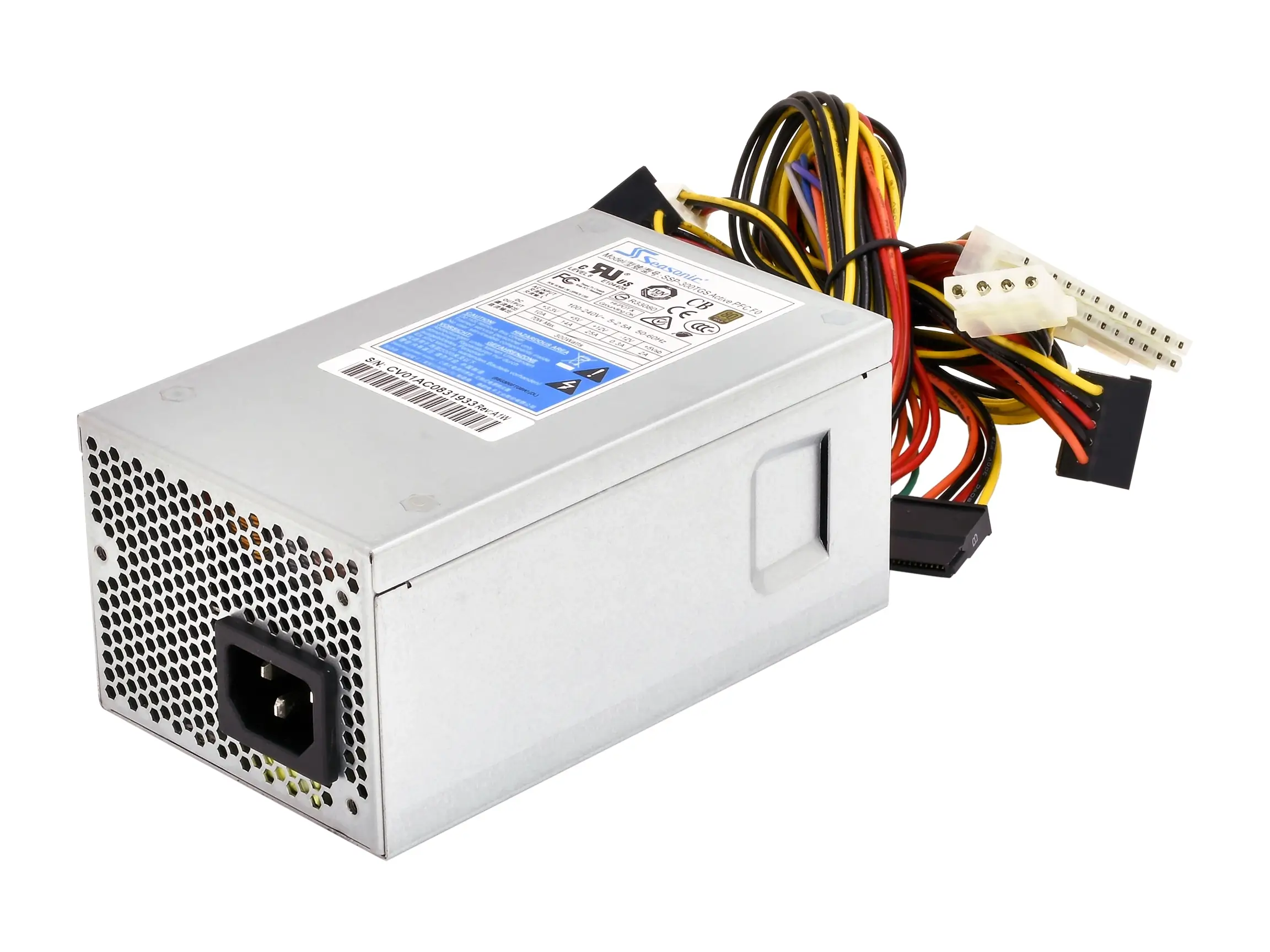

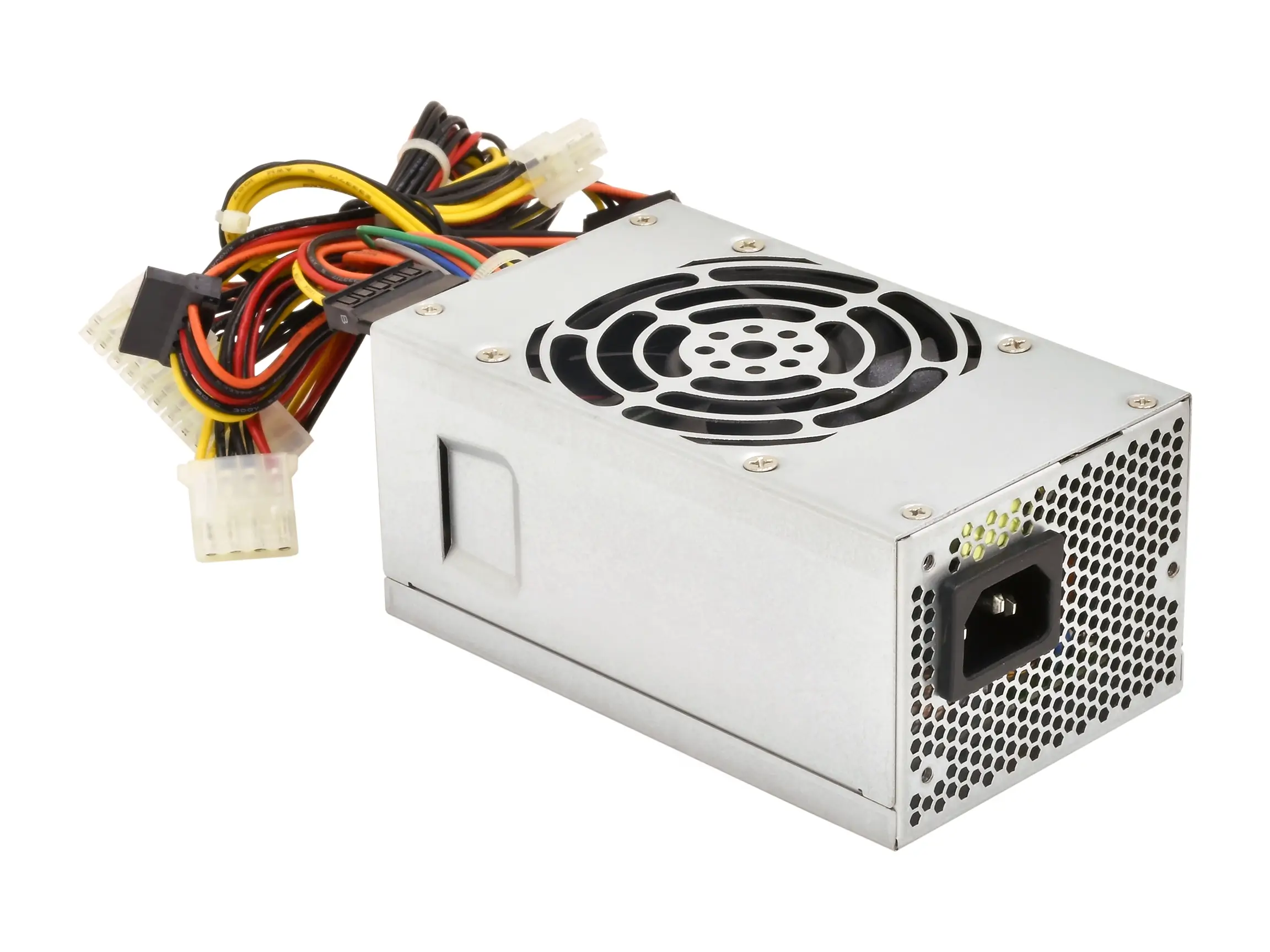

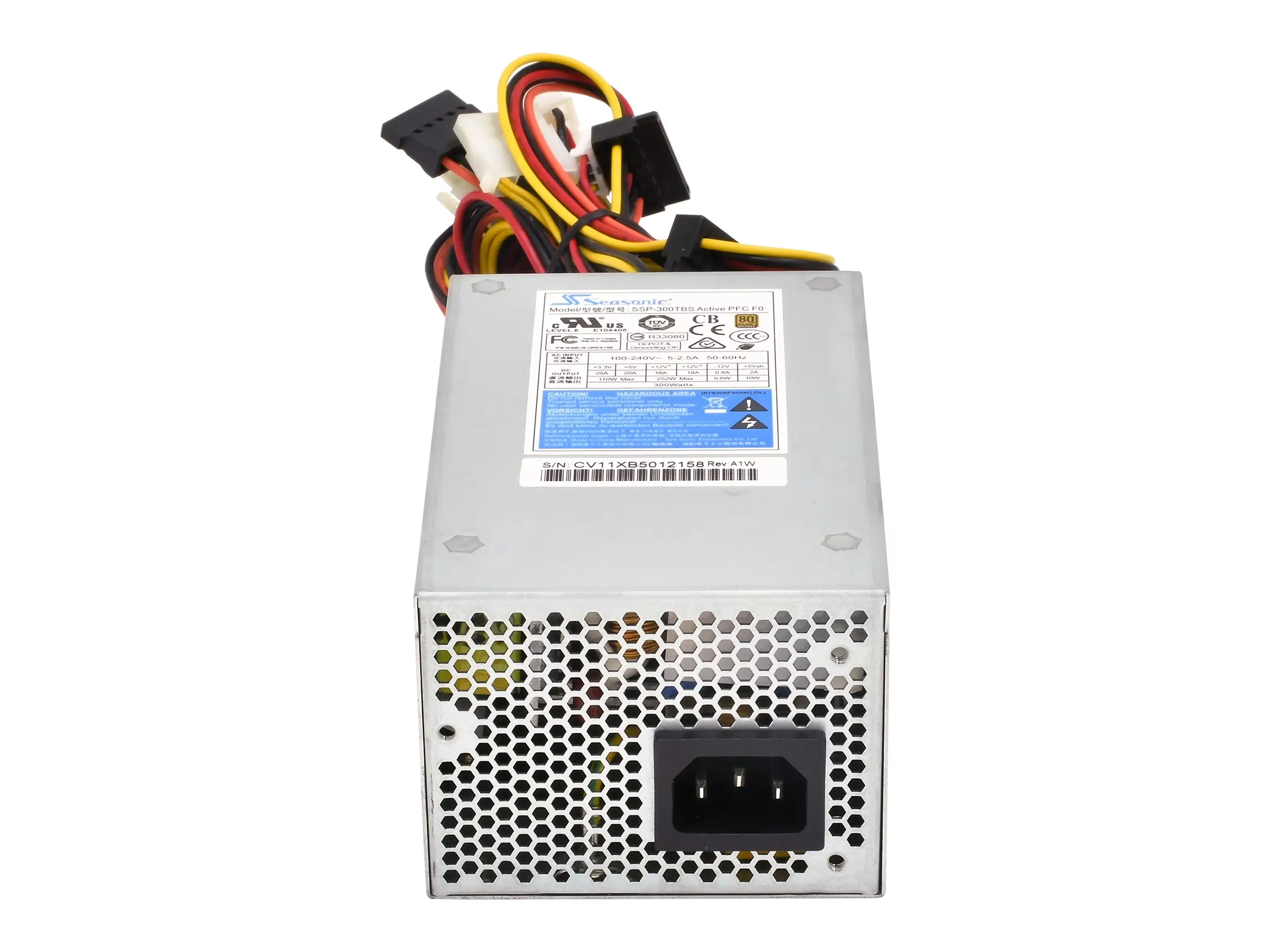

This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.

Compare

Certification

80PLUS® Gold
Dimensions

140 x 85 x 65 mm
Safety

CB, cUL, TUV, CCC, BSMI
EMI / EMC

CE, FCC, RCM

Documents

All Files

Specifications

300 W

Overview
ATX Compatibility	Intel ATX 12 V v2.31 compliant
Dimensions	140 × 85 × 65 mm
Circuit design	DC to DC converter design
Fan	80 mm double ball bearing fan
Fan Control	S2FC
Protections	SCP, OVP, OPP
Quality Control	Burn-in, high temperature cycled on/off
Safety and Environmental Compliance	CB, cUL, TUV, CCC, BSMI

Technical Specifications
Input Frequency	50 / 60 Hz
Efficiency	80PLUS® Gold
Line Regulation	‡ 1% (typical)
Load Regulation	‡ 5 % (typical)
Cross Regulation	‡ 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan)	> 100,000 hours
Active Power Factor Correction	> 95 % (typical)

DC Output
+3.3V	+5V	+12 V Combined	-12 V	+5 V_sb	Total Continuous Power	Input Type
10A	14A	25A	0.3A	2A	300 W	100–240 VAC
70 W		300 W		3.6 W	10 W
