The Seasonic Smart Sensor is a minimal footprint sensor system consisting of sensing, communication, and computation modules. The device is designed to support requirements of detection, safety, and control functions of modern electrical power systems at various venues.

Managing sensory information is critical for a diverse range of applications; from the timely and accurate monitoring of work processes and facilities to dealing with unexpected occurrences. The Seasonic Smart Sensor can be installed on-the-fly into any electrical switch board or fuse box to receive valuable management data stream over time to optimize processes and eventually control expenses associated with energy usage.

Non-Intrusive Deployment Measurement

There is no need to turn off the main power during installation.
Temperature Control

The Smart Sensor is capable of monitoring the temperature of the electric wires and can send timely warning signals when the heat rises above a preset safe level.
Ultra Compact Size

No extra space required, can easily be installed inside the electrical panel.
The sensor does not interfere with the electric system, with minimal distortion on the acquired data. The accuracy of numerical measurement on the Single-phase electric power is about 93 % - 95 %.

Highly Accurate Readings
Universal Communication Interface

Supports Modbus RTU communication protocol.
Communication Interface

The Communication Interface can be daisy chained up to 20 units on one chain.

Non-Intrusive Deployment Measurement

There is no need to turn off the main power during installation.

Temperature Control

The Smart Sensor is capable of monitoring the temperature of the electric wires and can send timely warning signals when the heat rises above a preset safe level.

Ultra Compact Size

No extra space required, can easily be installed inside the electrical panel.

Highly Accurate Readings

The sensor does not interfere with the electric system, with minimal distortion on the acquired data. The accuracy of numerical measurement on the Single-phase electric power is about 93 % - 95 %.

Universal Communication Interface

Supports Modbus RTU communication protocol.

Communication Interface

The Communication Interface can be daisy chained up to 20 units on one chain.

Seasonic Smart Sensor

Components and Dimensions

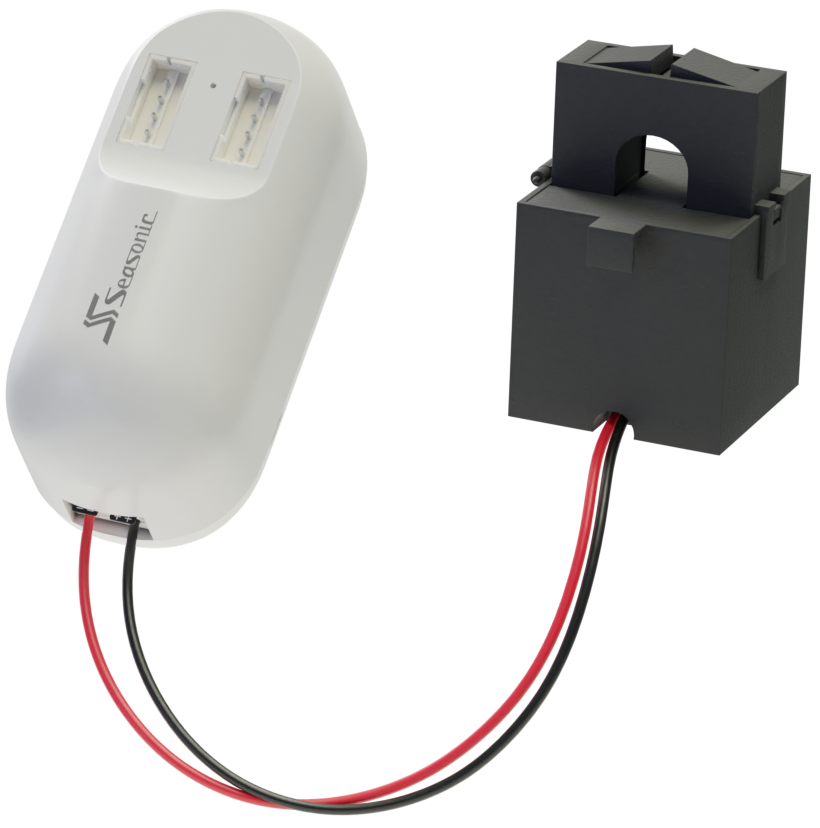

Smart Sensor / Communication Interface

Patented device for data collection and analysis

Current Transformer

20 A

LxW×H (±0.5)
26.4×25×33.8 mm

Wire diameter (±0.5)
6.5 mm
60 A

LxW×H (±0.5)
30.5×27.8×40 mm

Wire diameter (±0.5)
10 mm
120 A

LxW×H (±0.5)
31×35.6x45.5 mm

Wire diameter (±0.5)
16.3 mm
150 A

LxW×H (±0.5)
41.4×52.5×65.2 mm

Wire diameter (±0.5)
23.9 mm
200 A

LxW×H (±0.5)
41.4x52.5x65.2 mm

Wire diameter (±0.5)
23.9 mm
250 A

LxW×H (±0.5)
41.4×52.5×65.2 mm

Wire diameter (±0.5)
23.9 mm
Custom

LxW×H (±0.5)
Custom solutions up to 600 A

Wire diameter (±0.5)
Custom solutions up to 600 A

20 A

LxW×H (±0.5)
26.4×25×33.8 mm

Wire diameter (±0.5)
6.5 mm

60 A

LxW×H (±0.5)
30.5×27.8×40 mm

Wire diameter (±0.5)
10 mm

120 A

LxW×H (±0.5)
31×35.6x45.5 mm

Wire diameter (±0.5)
16.3 mm

150 A

LxW×H (±0.5)
41.4×52.5×65.2 mm

Wire diameter (±0.5)
23.9 mm

200 A

LxW×H (±0.5)
41.4x52.5x65.2 mm

Wire diameter (±0.5)
23.9 mm

250 A

LxW×H (±0.5)
41.4×52.5×65.2 mm

Wire diameter (±0.5)
23.9 mm

Custom

LxW×H (±0.5)
Custom solutions up to 600 A

Wire diameter (±0.5)
Custom solutions up to 600 A

Easy Installation

The Seasonic Smart Sensor can easily be installed in any organization to identify the operation status of any facility and to measure the distribution of electric consumption per group and to provide monitoring over time.

The sensor is an important technological enabler to tap into real-time current information to analyze the most important characteristics of the system at the focus point of the analysis.

The Seasonic Smart Sensor stands out amongst its peers not only with its small size and easy installation feature, but it is also able to provide comprehensive data connected to the characteristics of the electric current and temperature.

The following data can be gathered:

Temperature (T)
Power Factor (PF)
Voltage (V)
Amperage (A)
Frequency (Hz)
Power (W)
Load (kWh)

The Seasonic Smart Sensor is one of the most cost-efficient ways to collect valuable management data in the most user-friendly way.

You can contact our Team to design the best solution for your situation by filling out this form.

Specifications

Technical Specifications
AC Voltage			AC 90~600V
AC Current			20A/60A/120A/150A/200A/250A
AC Frequency			30Hz~1kHz
Temperature			-10~120°C - Temperature Resolution：0.1°C
AC Power Factory			‡0.01~0.99 / resolution: >95%
Install Method			snaps onto power line
Sise and Weight			50 x 23 x 27 mm, 20 g
Power Input			DC9V/20mA, ripples<150mV
Communication interface			RS485 RTU
Communication protocol			Modbus RTU, response < 1 #
Protect			Wrong AC L/N polarity, surge protection
Hi resolution item			Hi resolution item A, PF, CF, VA, W
Function	Anti-harmonic	+
Function	Anti-wireless	+
Safety		CE	EN 55032:2015+A11:2020 Class A
		CE	EN 55035:2017+A11:2020
		FCC	ANSI C63.4-2014

Communication interface

VCC (9V/20mA)

GND (Ground)

RS485 Data+ (A)

RS485 Data- (B)

Gallery

Datasheets

Availability differs by geographical region. Please contact your local Seasonic Representative to obtain more information.
